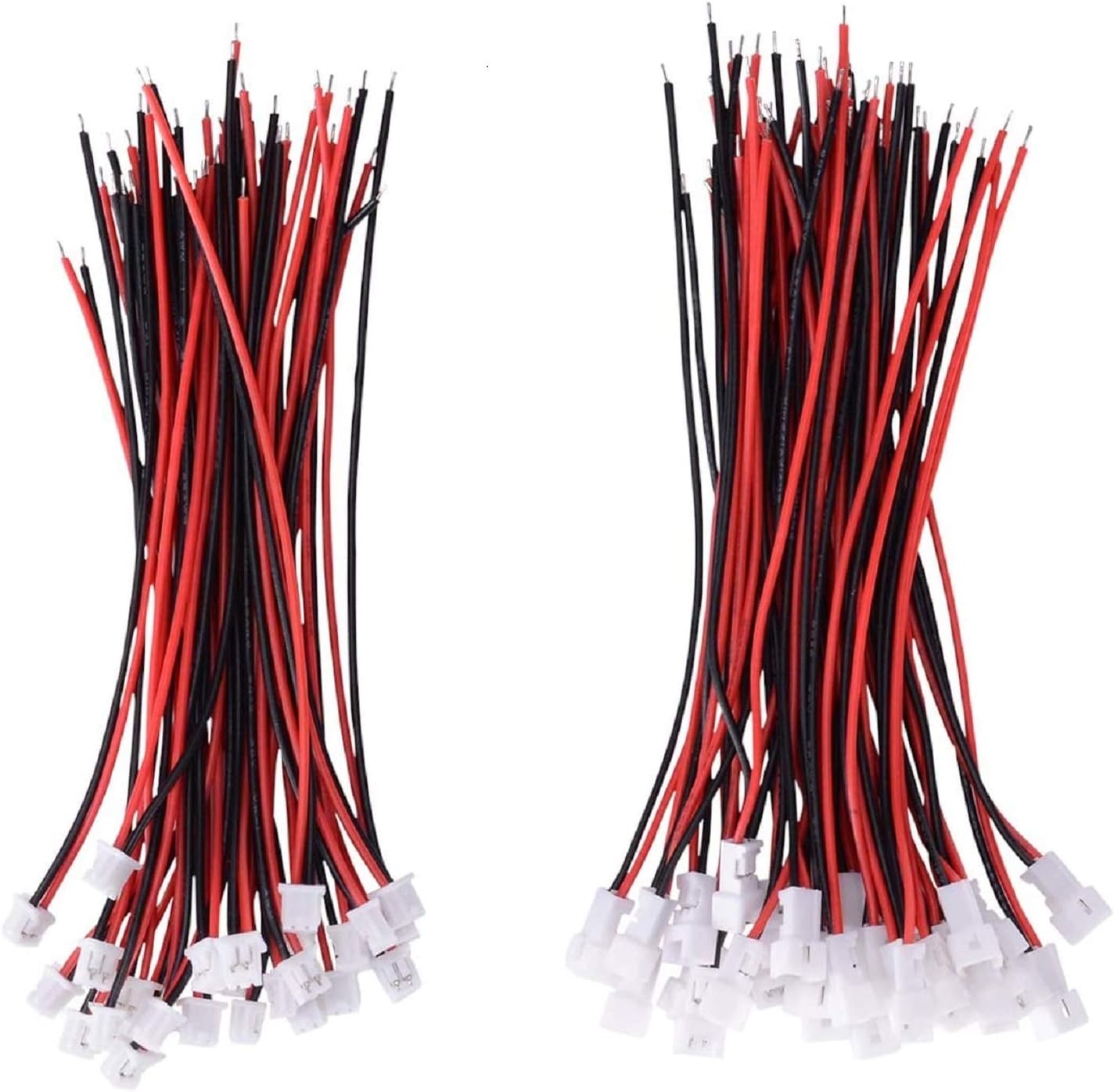

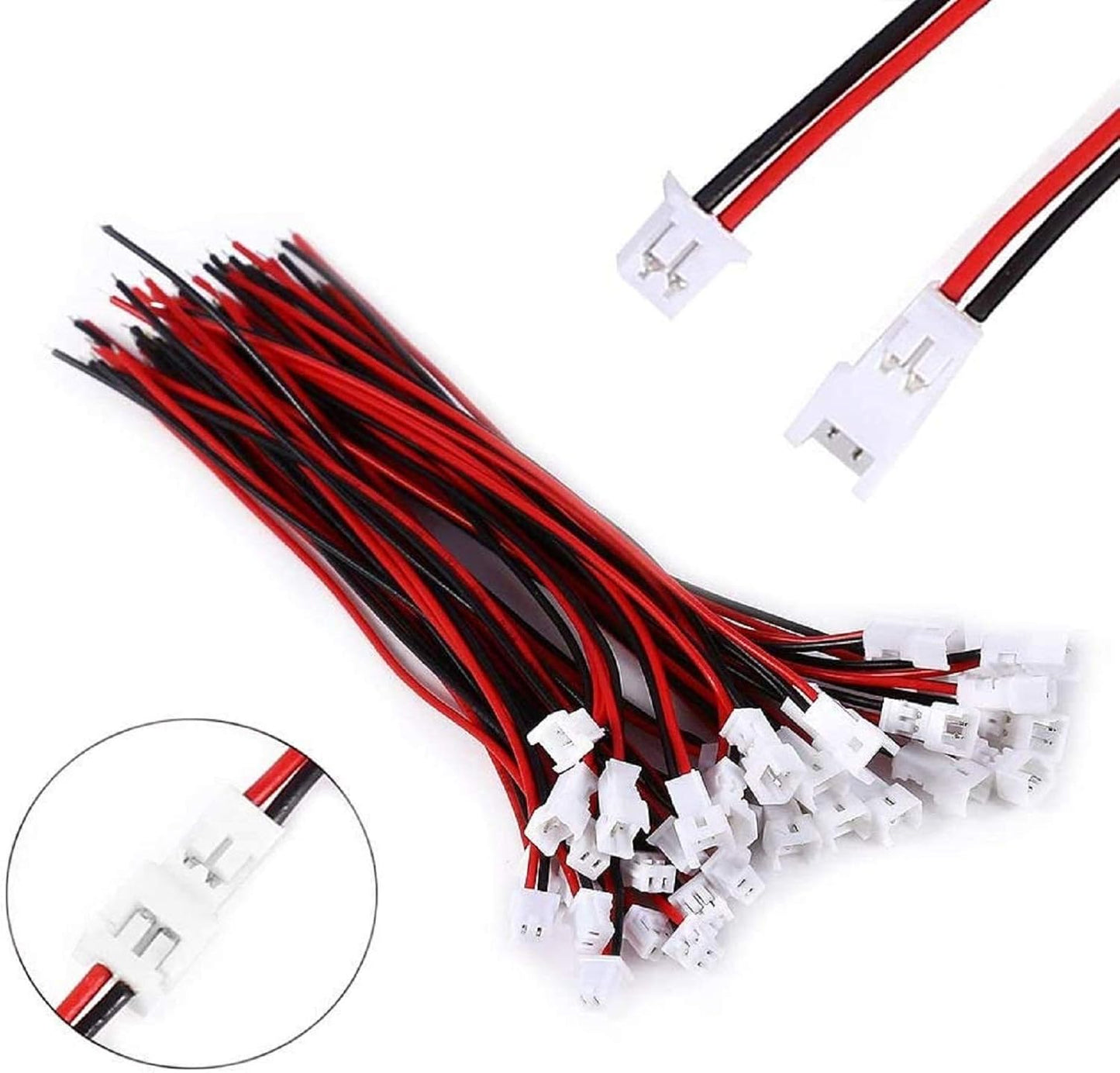

30 Pairs JST 1.25 mm 2 Pin Micro Male/Female Connector Plugs with Red Black Wire 80 mm
30 Pairs JST 1.25 mm 2 Pin Micro Male/Female Connector Plugs with Red Black Wire 80 mm
Couldn't load pickup availability
- 【Wire specification】: 1571#28

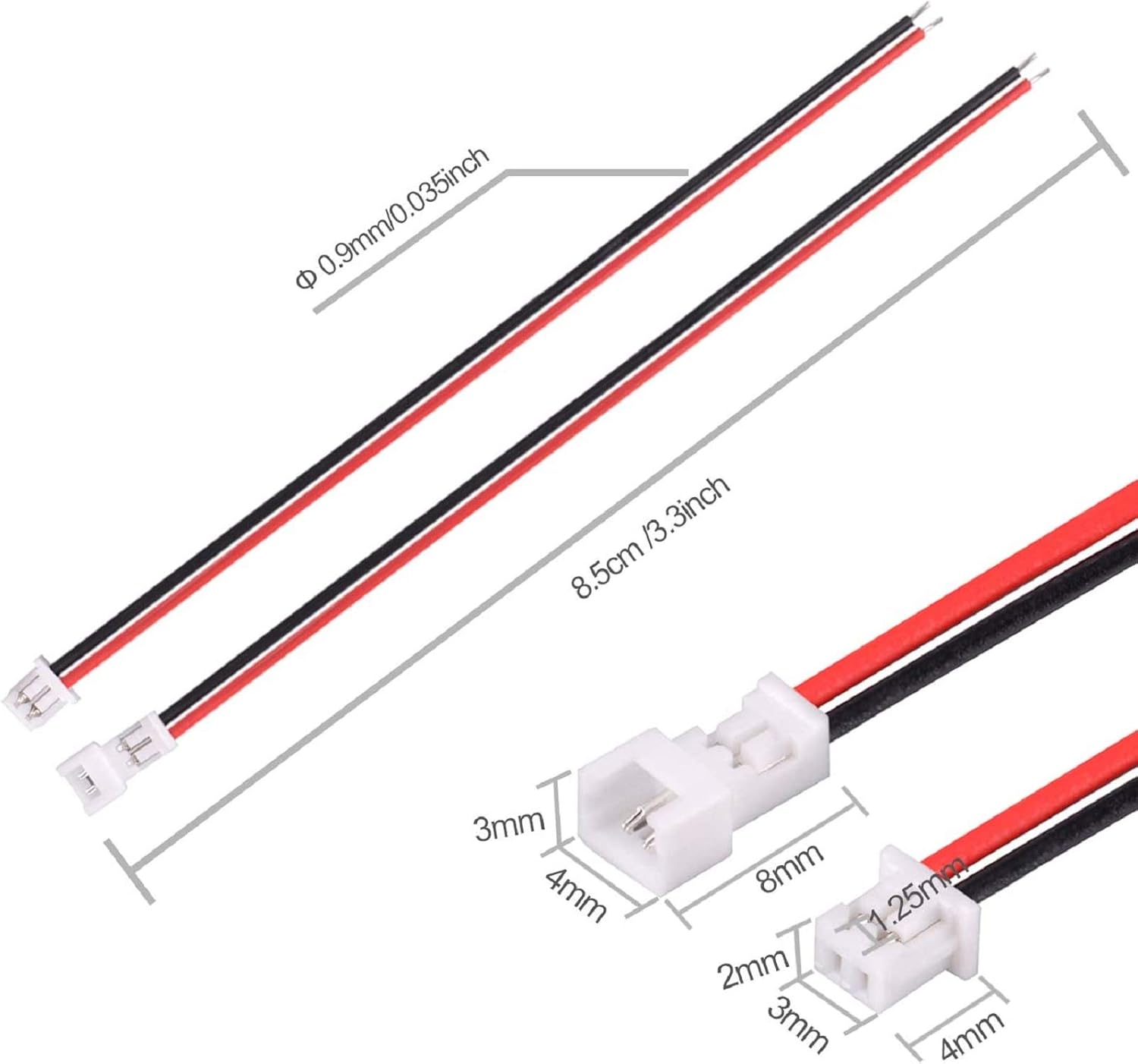

- 【Micro connector dimension】: micro jst 1.25mm each cable wire length is approx. 8 cm/ 3.15 inches（Male Length+ Female Length: 170MM）, the cable wire diameter is 1.25 mm, micro size fits Creality led connection
- 【Wire core】: 7 section 0.11 mm zinc copper, external diameter is 0.9 mm, tail zinc size is 2 mm, standard size, suitable for common uses

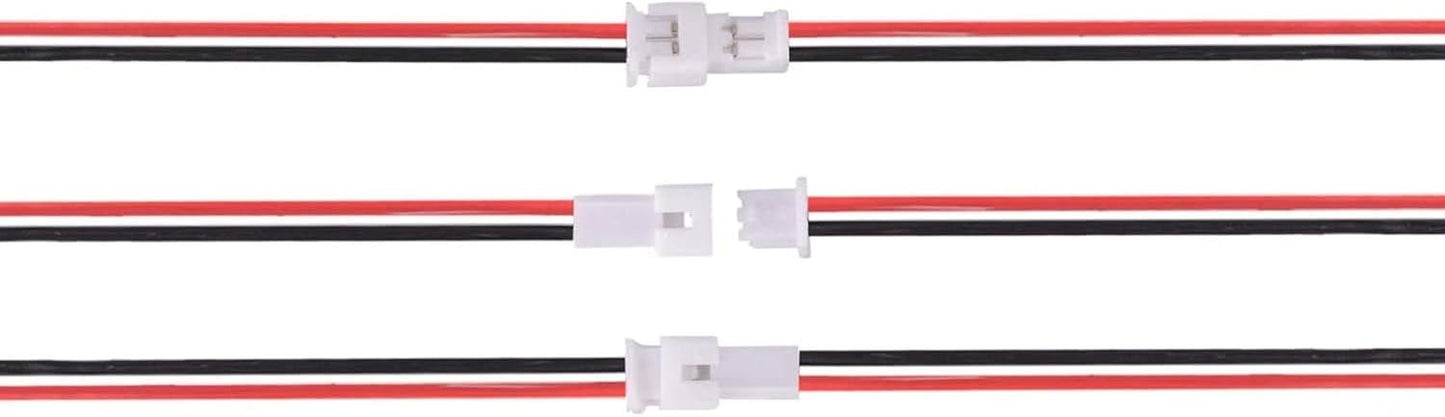

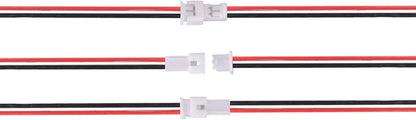

- 【Match well with】: 26 AWG jst 1.25mm 2 pin micro male connector match well with female connector, easy to install and use
- 【Common usage】: Creality LED light mods, mini RC helicopter，LED strips，electrical appliances, automobiles, robots, lighting, toys,batteries etc.
Features:
100% brand new and high quality

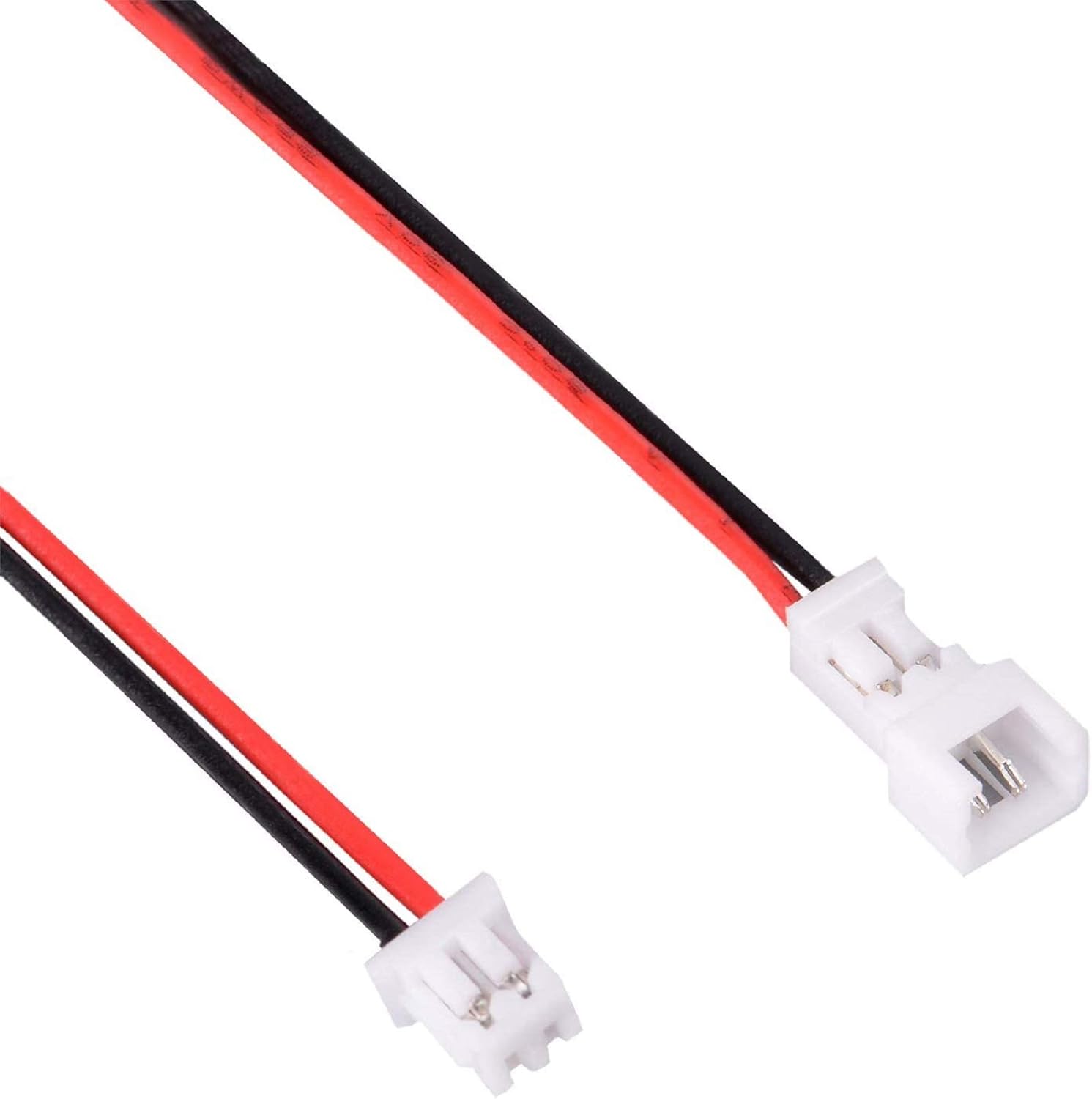

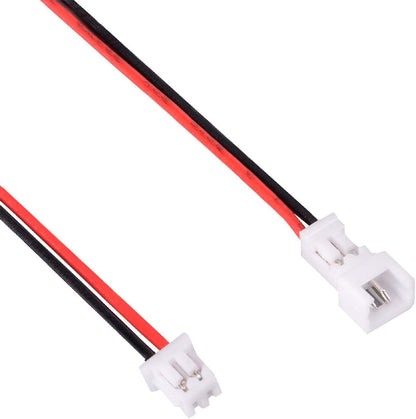

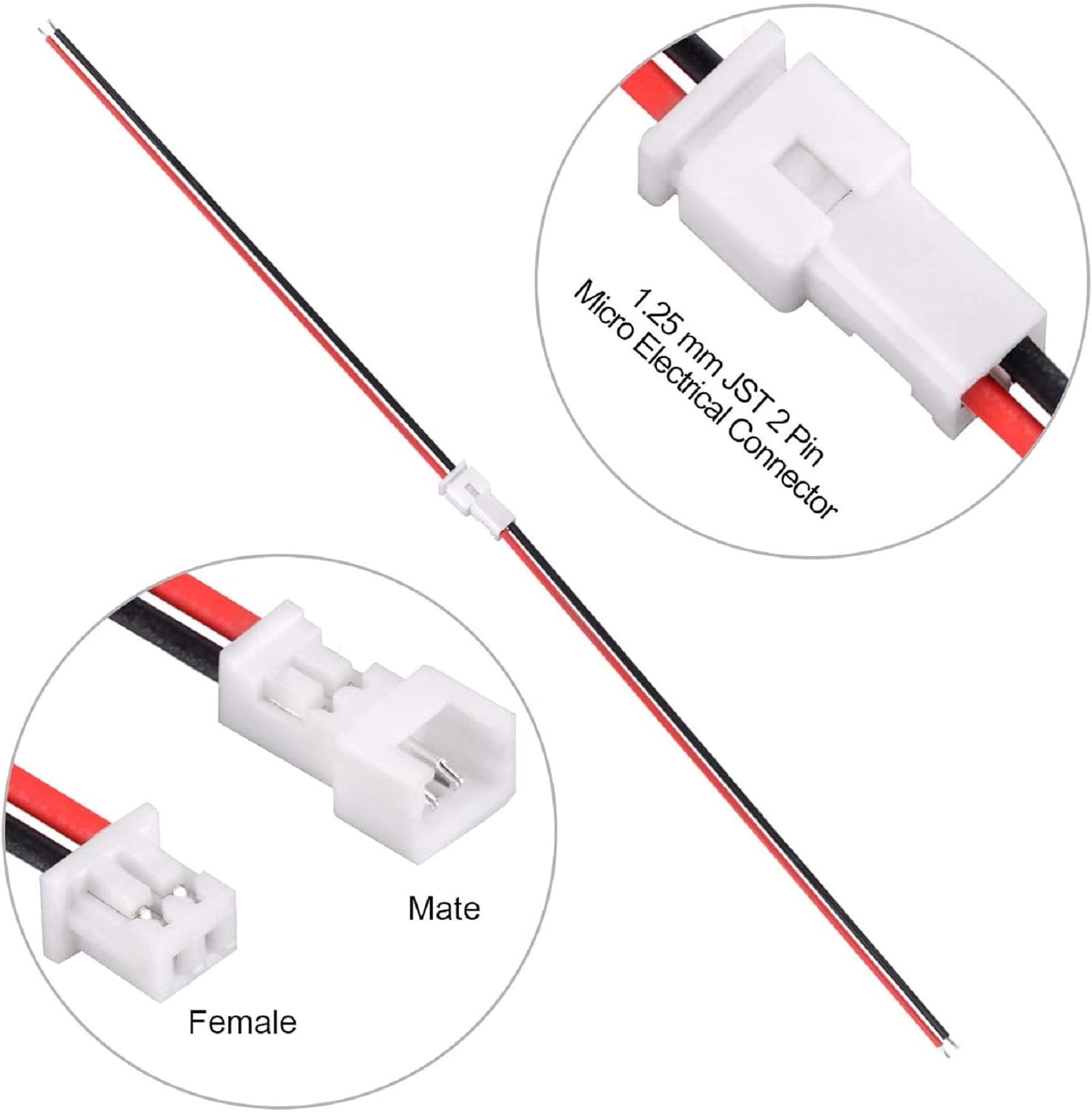

Micro jst 1.25mm 2-Pin Male and Female Connector plug with Wires Cables
Micro connector Light weight, small resistance, the use of green tin solder
Specifications:
1.Cable type: 2pin.
2.Length of wire: 8.5cm/3.3in
3.Rated temperature:80℃
4.Rated Voltage: 30V
5.Material: Tinned copper wire, plastic head at each end.
6.Reference standard: UL758, UL1581
7.Pitch size: 2.54mm.
8.PVC SR-PVC iNSulation, comply with ROHS environmental standard
PVC jacket, pased ROHS environmental standard (optional)
Tinned or bare copper wire spiral shield (optional)
Passes UL VW-1 and JQA J-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
APPLICATION: For general purpose internal wiring of appliance,uniform insulation thickness, reliable safety, no looseness, light and beautiful
widely used in mini RC helicopter，LED strips，electrical appliances, automobiles, robots, lighting, toys,batteries etc.
Package includes:
30 x Female jst 1.25 mm 2 pin connector with cable wire
30 x Male jst 1.25 mm 2 pin connector with cable wire
